Premium Dot Peen Systems
Pryor Premium Dot Peen Systems
TSA supplies and supports the complete range of Pryor Premium Dot Peen Marking systems in Thailand.
Dot Peen is computer controlled Marking, providing a permanent mark of variable information. Dot Peen marking is the best solution when indented marking and deep marking is required and the data changes frequently.
Dot Peen is ideal for marking different shaped components or different alphanumeric or Data Matrix identification codes. The user can easily change the font, the size of the mark, the shape of the mark (straight, angled, arc, reverse), the depth of the mark, the density of the ‘dots’ and each final design can be saved as a set ‘layout’. This makes it very easy for an operator to save multiple layouts for different components which can then be selected as the part is loaded, providing fast and accurate setup every time.
Dot Peen is ideal for marking different shaped components or different alphanumeric or Data Matrix identification codes. The user can easily change the font, the size of the mark, the shape of the mark (straight, angled, arc, reverse), the depth of the mark, the density of the ‘dots’ and each final design can be saved as a set ‘layout’. This makes it very easy for an operator to save multiple layouts for different components which can then be selected as the part is loaded, providing fast and accurate setup every time.
Overview

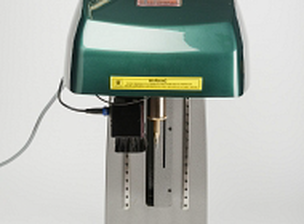

The Pryor Bench Dot is a bench mounted dot-peen marking (also known as impression marking or dot marking) machine.
These are robust and compact marking devices that can easily integrate into a workshop environment due to their quality build and compact size.
A twin head option is also available for high production rate requirements and each head can be configured to mark different data within a single cycle.
Key Points
The Pryor Bench Dot is a bench mounted dot-peen marking (also known as impression marking or dot marking) machine.
These are robust and compact marking devices that can easily integrate into a workshop environment due to their quality build and compact size.
- Suitable for marking small to medium sized components of unusual shapes and dimensions
- Ideal for marking alphanumeric identification and Data Matrix codes
- Available with a wide range of accessories to tailor to your specific marking requirements
- Machine of choice for rigorous specifications of dot matrix marking in the aerospace industry
- A single marking system for all requirements
A twin head option is also available for high production rate requirements and each head can be configured to mark different data within a single cycle.
Key Points
- Fully programmable and controllable output
- High quality ball-screw mechanism ensuring highest levels of precision
- Ability to save multiple mark layouts, enabling fast, accurate and consistent setup
- Easy to use
- Robust and Compact Highly efficient
Overview

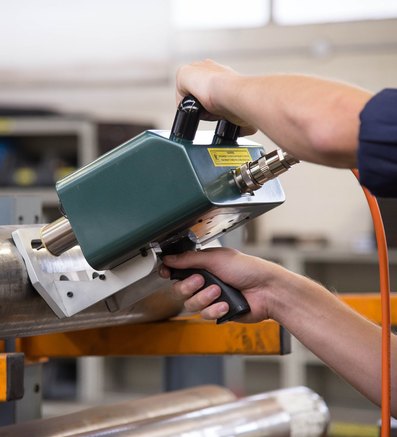

The Pryor PortaDot Range provides a fast and portable method of dot-peen marking, otherwise known as dot marking. It is ideal for marking permanent alphanumeric, logo or 2D barcode information onto immobile, large or heavy components and is often used in rail, oil and gas, foundry and construction applications.
The Pryor PortaDot Range provides a fast and portable method of dot-peen marking, otherwise known as dot marking. It is ideal for marking permanent alphanumeric, logo or 2D barcode information onto immobile, large or heavy components and is often used in rail, oil and gas, foundry and construction applications.
- Portable permanent marking by dot-peen method
- Ideal for marking immobile, large or heavy components.
- Often used in rail, oil and gas/pipeline, casting/forging, VIN marking, and construction applications
- Marks a series of indented 'dots' that are able to create alphanumeric, logo or 2D barcode information.
Pryor has also developed a Deep Pneumatic PortaDot for creating deep marks and for marking very hard materials. This is ideal when the mark is to be painted or coated. Whatever your requirements, Pryor will have a solution.
Key Points
Key Points
- Portable and lightweight 3 marking window size options
- Fully programmable for flexibility and control
- Large storage capacity for fast set-up of pre-designed marking layouts
- A variety of fixturing options are available to tailor the machine to your specific requirements.
- Custom fixturing option also available on request
Pryor's InDot
Overview

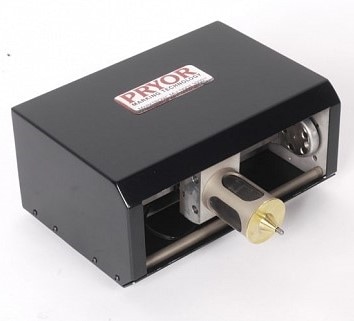

The Pryor InDot range of dot-peen marking machines provide a sequence of impact dot marks that create a human or machine readable inscriptions such as identification codes, logos and 2D Data Matrix barcodes. This range of machines is compact and designed to be integrated into either an existing production line, or integrated into a turnkey bespoke installation.
The Pryor InDot range of dot-peen marking machines provide a sequence of impact dot marks that create a human or machine readable inscriptions such as identification codes, logos and 2D Data Matrix barcodes. This range of machines is compact and designed to be integrated into either an existing production line, or integrated into a turnkey bespoke installation.
- Designed for integration into an existing production line, or into a turnkey bespoke installation
- Ideal for high volume production rates
- Often used in the aerospace industry due to unbeatable dot matrix dot accuracy
- Various marking window size options
- Various controller options
Pryor also supplies an InDot Fast Pneumatic for high speed marking and an InDot Deep Pneumatic for deep marking or marking of dense materials
Key Points
Key Points
- Very easy to integrate into existing production lines
- Compact design - ideal for when workshop space is scarce Absolute precision ensured by lead screw mechanism
- Variable force control to ensure optimum output depth on various materials
- Consistent marking depth
