Traceability Solutions Asia along with our partner Pryor Marking Technology offers the broadest range of marking and traceability products on the market.
Pryor marking machines can mark a very wide range of work pieces using a variety of different character styles, sizes and depths. This guide outlines how to get the best out of your equipment. It covers Dot Peen marking methods. Other marking technologies available from Pryor are dealt with in separate articles in their knowledge centre.
A .pdf version of this guide is available to download and print.
Dot Peen

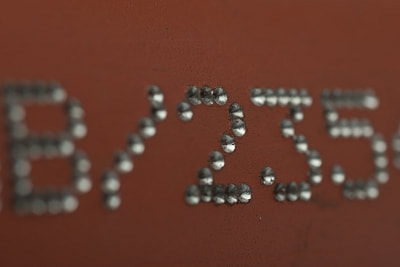

Dot Peen marking is also known as dot marking, stylus pin marking and micro percussion marking. This method uses a stylus that rapidly actuates to indent a series of dots on to the surface of a material. The stylus is programmed to move around the surface in x and y directions, resulting in a succession of dots that create digits, text, logos and 2D Data Matrix codes. Pryor's standard machines use an electrically driven solenoid to actuate the stylus, but pneumatic actuation is also available for deep marking or fast marking. Dot peen marking provides fast, accurate, low-stress marking and can mark through coatings or film on the material surface.
It is the ideal method for permanently marking a Data Matrix code onto a metal component. A Data Matrix is a 2D barcode which care store a large amount of data.
Fixturing
IMPORTANT - Unless the work piece is held firmly then there is little hope of obtaining a good quality mark.
If you have a wide variety of work pieces to mark then you may have to make several interchangeable fixtures. Use a magnetic chuck, or similar, to allow these fixtures to be changed over quickly and accurately.
Work piece material
The machines may mark a very wide range of materials but some materials are easier to mark than others.
The harder the material, the shallower the depth of mark will be. The type of material will also influence the life of the stylus, the stylus tip will wear or chip quickly the harder the material. The angle of the stylus tip may be changed to reduce the chance of chipping. Changing the angle may also increase the readability of the mark.
Surface finish
Smooth, well finished work pieces are easier to mark than rough, scaled work pieces. The worse the finish, the deeper the mark will have to be to remain readable.
Painted work pieces may be marked but the paint may chip, try changing the stylus tip angle to reduce the chipping.
Work piece flatness
The machine can mark on surfaces which are not completely flat but the depth of the mark will vary across the surface. For dot marking, as the gap between the stylus tip and the surface of the work piece increases, the depth of the mark will increase. If the difference in gap is only 1 to 2 mm (0.040" to 0.080") then the mark produced may be acceptable.
If you have to mark a heavily contoured surface (a cylindrical work piece, for example) then there are several things that should be considered:
Depth of mark
The depth of mark depends on the following factors
(90° Stylus – Note marking depths vary depending on material hardness and stylus tip angle)

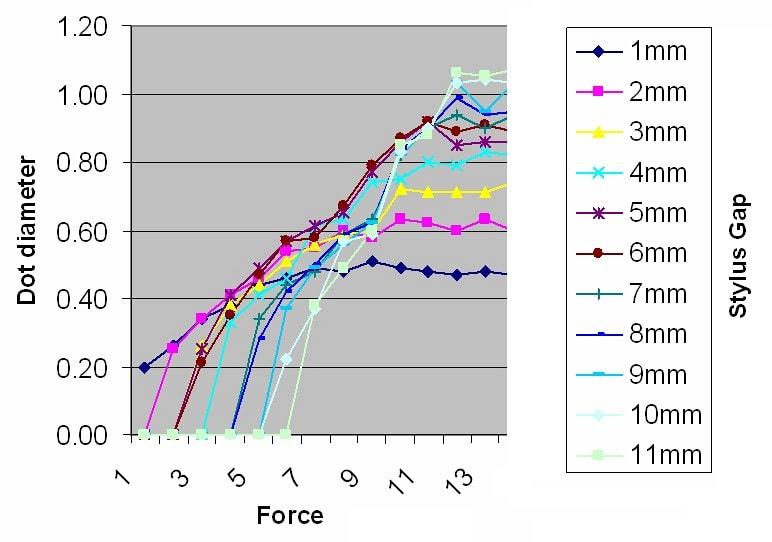

The effect of marking force versus marking gap is illustrated in the chart.
Pryor marking machines can mark a very wide range of work pieces using a variety of different character styles, sizes and depths. This guide outlines how to get the best out of your equipment. It covers Dot Peen marking methods. Other marking technologies available from Pryor are dealt with in separate articles in their knowledge centre.
A .pdf version of this guide is available to download and print.
Dot Peen
Dot Peen marking is also known as dot marking, stylus pin marking and micro percussion marking. This method uses a stylus that rapidly actuates to indent a series of dots on to the surface of a material. The stylus is programmed to move around the surface in x and y directions, resulting in a succession of dots that create digits, text, logos and 2D Data Matrix codes. Pryor's standard machines use an electrically driven solenoid to actuate the stylus, but pneumatic actuation is also available for deep marking or fast marking. Dot peen marking provides fast, accurate, low-stress marking and can mark through coatings or film on the material surface.
It is the ideal method for permanently marking a Data Matrix code onto a metal component. A Data Matrix is a 2D barcode which care store a large amount of data.
Fixturing
IMPORTANT - Unless the work piece is held firmly then there is little hope of obtaining a good quality mark.
If you have a wide variety of work pieces to mark then you may have to make several interchangeable fixtures. Use a magnetic chuck, or similar, to allow these fixtures to be changed over quickly and accurately.
Work piece material
The machines may mark a very wide range of materials but some materials are easier to mark than others.
The harder the material, the shallower the depth of mark will be. The type of material will also influence the life of the stylus, the stylus tip will wear or chip quickly the harder the material. The angle of the stylus tip may be changed to reduce the chance of chipping. Changing the angle may also increase the readability of the mark.
Surface finish
Smooth, well finished work pieces are easier to mark than rough, scaled work pieces. The worse the finish, the deeper the mark will have to be to remain readable.
Painted work pieces may be marked but the paint may chip, try changing the stylus tip angle to reduce the chipping.
Work piece flatness
The machine can mark on surfaces which are not completely flat but the depth of the mark will vary across the surface. For dot marking, as the gap between the stylus tip and the surface of the work piece increases, the depth of the mark will increase. If the difference in gap is only 1 to 2 mm (0.040" to 0.080") then the mark produced may be acceptable.
If you have to mark a heavily contoured surface (a cylindrical work piece, for example) then there are several things that should be considered:
- Try to use as large a gap as possible. If you have an initial gap of 5mm (0.200") then a change of 1mm (0.040") will have less effect than the same change would have had with an initial gap of 2mm (0.080"), for example.
- Mark a line of text by splitting it into several sections and then marking each with a different force to compensate for the change in gap. If using this approach the Split Line software function will assist if marking variable data.
- Reduce the character size or width so that the whole mark is shorter.
Depth of mark
The depth of mark depends on the following factors
- marking force (programmed on the controller)
- marking gap (distance between stylus tip and work piece)
- material hardness of the work piece
- stylus tip angle.
(90° Stylus – Note marking depths vary depending on material hardness and stylus tip angle)
The effect of marking force versus marking gap is illustrated in the chart.
Marking gap
The marking gap is the distance between the stylus tip and the surface of the work piece. Changing the marking gap changes the depth of mark. The larger the gap, the deeper the mark.
Stylus tip angle
The stylus tip angle (normally 90° included) may be varied to increase stylus life, increase the depth of the mark or increase the readability of the mark (though not all of these at once!)
A small included angle (perhaps 60°) will give a deep mark but stylus life will be reduced. The deeper mark obtained may even be less readable because the diameter of individual dots will be less.
A large included angle (perhaps 120°) will result in a longer stylus life. A less deep mark will be obtained but the mark may be more readable, this is because individual dots will be wider. Marking Data Matrix codes with a stylus angle of 120° often produces the best results and leads to the most readable codes.
A mini-stress stylus (radius tip) will help to eliminate any stress on the work piece but will result in a shallower mark.
Character size
The machines can mark characters from 0.15 to 49.95mm (0.006" to 1.967") high. Avoid using very large or very small characters, if possible. We class small characters as being up to 1.00mm (0.040"), medium characters as being 1.00mm to 4.00mm (0.040" to 0.160"), and large characters as being larger than 4.00mm (0.160").
Large characters take longer to mark than medium size characters, they also need to be marked more deeply to remain readable. If you need to mark large characters then consider using the 7x9 or Varidot style instead of the normal 5x7 style (the more dots there are, the more readable the mark).
The marking gap is the distance between the stylus tip and the surface of the work piece. Changing the marking gap changes the depth of mark. The larger the gap, the deeper the mark.
Stylus tip angle
The stylus tip angle (normally 90° included) may be varied to increase stylus life, increase the depth of the mark or increase the readability of the mark (though not all of these at once!)
A small included angle (perhaps 60°) will give a deep mark but stylus life will be reduced. The deeper mark obtained may even be less readable because the diameter of individual dots will be less.
A large included angle (perhaps 120°) will result in a longer stylus life. A less deep mark will be obtained but the mark may be more readable, this is because individual dots will be wider. Marking Data Matrix codes with a stylus angle of 120° often produces the best results and leads to the most readable codes.
A mini-stress stylus (radius tip) will help to eliminate any stress on the work piece but will result in a shallower mark.
Character size
The machines can mark characters from 0.15 to 49.95mm (0.006" to 1.967") high. Avoid using very large or very small characters, if possible. We class small characters as being up to 1.00mm (0.040"), medium characters as being 1.00mm to 4.00mm (0.040" to 0.160"), and large characters as being larger than 4.00mm (0.160").
Large characters take longer to mark than medium size characters, they also need to be marked more deeply to remain readable. If you need to mark large characters then consider using the 7x9 or Varidot style instead of the normal 5x7 style (the more dots there are, the more readable the mark).
